Sintered Filter Element
Sintered mesh filter is the application of sintered mesh , it is made of sintered mesh after cutting, precision welded sintered filter. The most important point of Sintered felt filter element is that a large number of high-precision welding is used. To ensure roundness and flat, Sintered wire mesh filter cartridge is sintered after using rolling seam welding process and the method of correction weld, it can make the overall look more beautiful.
Main filter medium of sintered filter elements is five-layer sintered wire cloth, filter rating is form 0.5 to 200 micron. Five-layer sintered wire cloth consists of five layers of stainless steel mesh, which are sintered together in vacuum.
Advantage:
Uniform hole size, stable filtration and high precision
Good permeability and high strength
High corrosion resistant, heat-resistant and durable at work
Easy cleaning and reverse cleaning
No material shedding and Long service life
Specification:
Filtration rate: 1-200μm
Temperature: -50℃-800℃
Diameter: 14-800mm, Length: 10-1200mm
Hanke Filter can be customized by your demands.
Application:
Polyester
Petrochemical, petroleum refining
Pharmaceutical and food refining or cycling
Hydraulic machine
Gas controlling
Water treatment

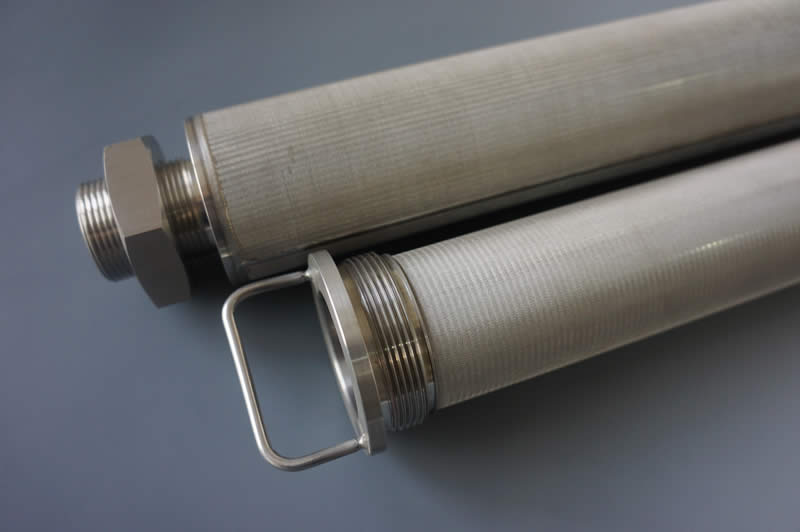

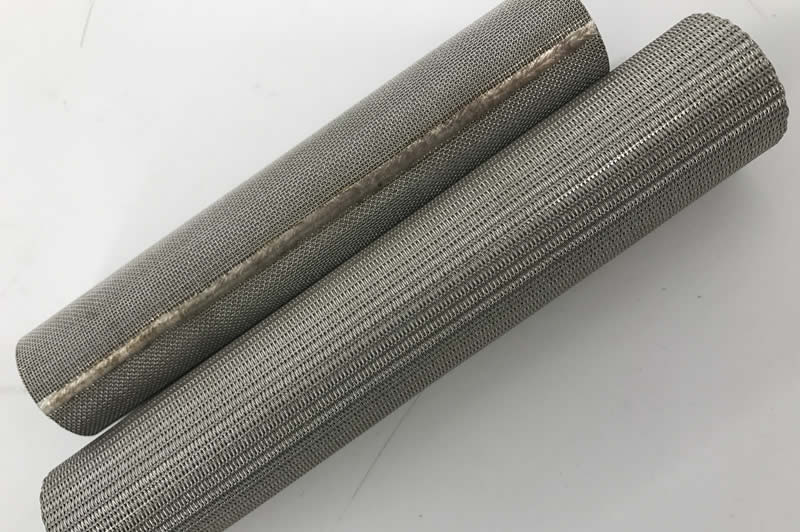

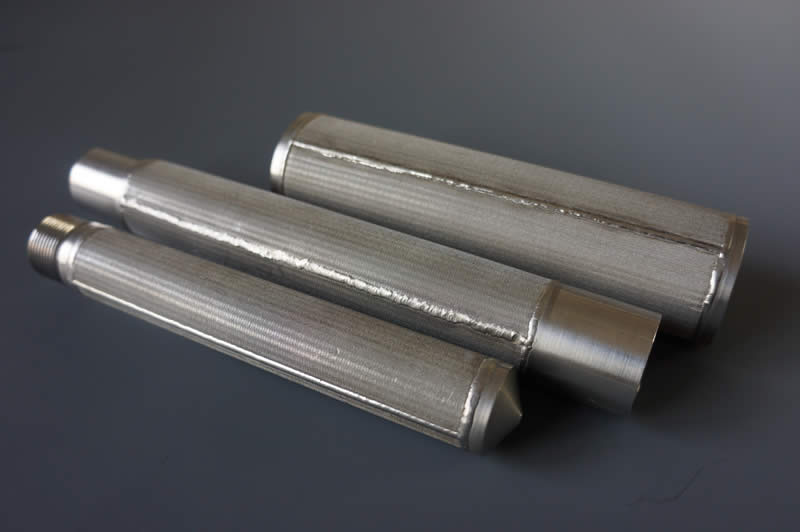

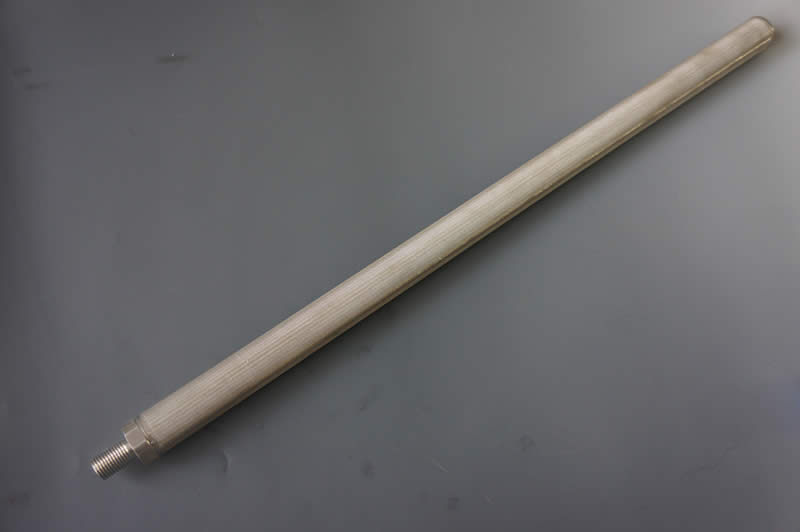

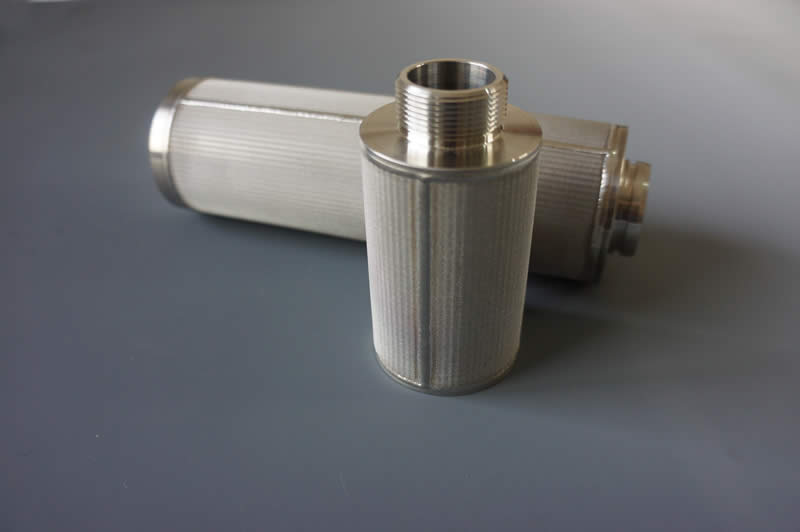

Photo List
Specification
| Nominal Filter Rating (μm) | Protective Layer Mesh | Filtration Layer Mesh | Dispersion Layer Mesh | Reinforcing Layer Mesh | Reinforcing Layer Mesh | Thickness (mm) | Air Permeability (L/min/cm2) | Bubble Pressure (mm H2O) | Weight (kg/m2) | Porosity |
| 1 | 200 | 400 x 3000 | 200 | 12 x 64 | 64 X 12 | 1.7 | 1.81 | 360 - 360 | 5 Layers (8.4) 6 Layers (14.4) | Approx 40% |
| 2 | 100 | 325 x 2300 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.35 | 300-590 | ||
| 5 | 100 | 200 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.42 | 260-550 | ||
| 10 | 100 | 165 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.00 | 220-500 | ||
| 15 | 100 | 165 x 1200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.41 | 200-480 | ||
| 20 | 100 | 165 x 800 | 100 | 12 x 64 | 64 X 12 | 1.7 | 4.50 | 170-450 | ||
| 25 | 100 | 165 x 600 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.12 | 150-410 | ||
| 30 | 100 | 400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.86 | 120-390 | ||
| 40 | 100 | 325 | 100 | 12 x 64 | 64 X 12 | 1.7 | 7.10 | 100-350 | ||
| 50 | 100 | 250 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.41 | 90-300 | ||
| 75 | 100 | 200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.70 | 80-250 | ||
| 100 | 100 | 150 | 100 | 12 x 64 | 64 X 12 | 1.7 | 9.10 | 70-190 | ||
| 150 | 50+100+50+30+30+100+50 | 2.0 | 25.00 | 50-150 | ||||||
| 200 | 40+80+40+20+40+80+40 | 2.0 | 26.00 | 50-150 | ||||||
| Model | L (mm) | D (mm) | M | Filter Area(M2) | R (µm) | Filter Media |
| CF-14/65-R | 65 | 14 | M10*1P M14*1P M14*1.5P 1/4"NPT | 0.002 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-14/250-R | 250 | 0.01 | ||||
| CF-14/500-R | 500 | 0.022 | ||||
| CF-14/1000-R | 1000 | 0.044 |
| Model | L (mm) | D (mm) | M | Filter Area(M2) | R (µm) | Filter Media |
| CF-25/250-R | 250 | 25 | M20*1.5P | 0.019 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-25/500-R | 500 | 0.039 | ||||
| CF-25/1000-R | 1000 | 0.078 | ||||
| CF-30/500-R | 500 | 30 | M20*2P M20*2.5P M28*2P | 0.046 | ||
| CF-30/1000-R | 1000 | 0.093 | ||||
| CF-30/1500-R | 1500 | 0.140 |
| Model | L (mm) | D (mm) | M | Filter Area(M2) | R (µm) | Filter Media |
| CF-50/250-R | 250 | 50 | Sealing ring or flange | 0.038 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Wire Cloth |
| CF-50/500-R | 500 | 0.078 | ||||
| CF-50/1000-R | 1000 | 0.150 | ||||
| CF-60/500-R | 500 | 60 | 0.094 | |||
| CF-70/500-R | 500 | 70 | 0.108 | |||
| CF-75/500-R | 500 | 75 | 0.115 | |||
| CF-90/500-R | 500 | 90 | 0.140 | |||
| CF-150/500-R | 500 | 150 | 0.230 | |||
| Note: Inner support of filter elements can be stainless steel perforated tube or spring | ||||||
| Model | L (mm) | D (mm) | M | Filter Area(M2) | R (µm) | Filter Media |
| CF-16/390-R | 390 | 16 | M16*1.5P M33*1.5P M33*2P M55*2P | 0.02 | 2, 5, 10, 15, 20, 30, 40, 75 | Stainless Steel Sintered Fiber Web; Stainless Steel Weaving Wire Cloth; Stainless Steel Sintered Wire Cloth |
| CF-50/500-R | 500 | 50 | 0.07 | |||
| CF-63/750-R | 750 | 63 | 0.15 | |||
| CF-65/266-R | 266 | 65 | 0.05 | |||
| CF-70/500-R | 500 | 70 | 0.10 | |||
| CF-70/1000-R | 1000 | 70 | 0.21 |
